Up to 207.9 hp From a Compact Four-Cylinder

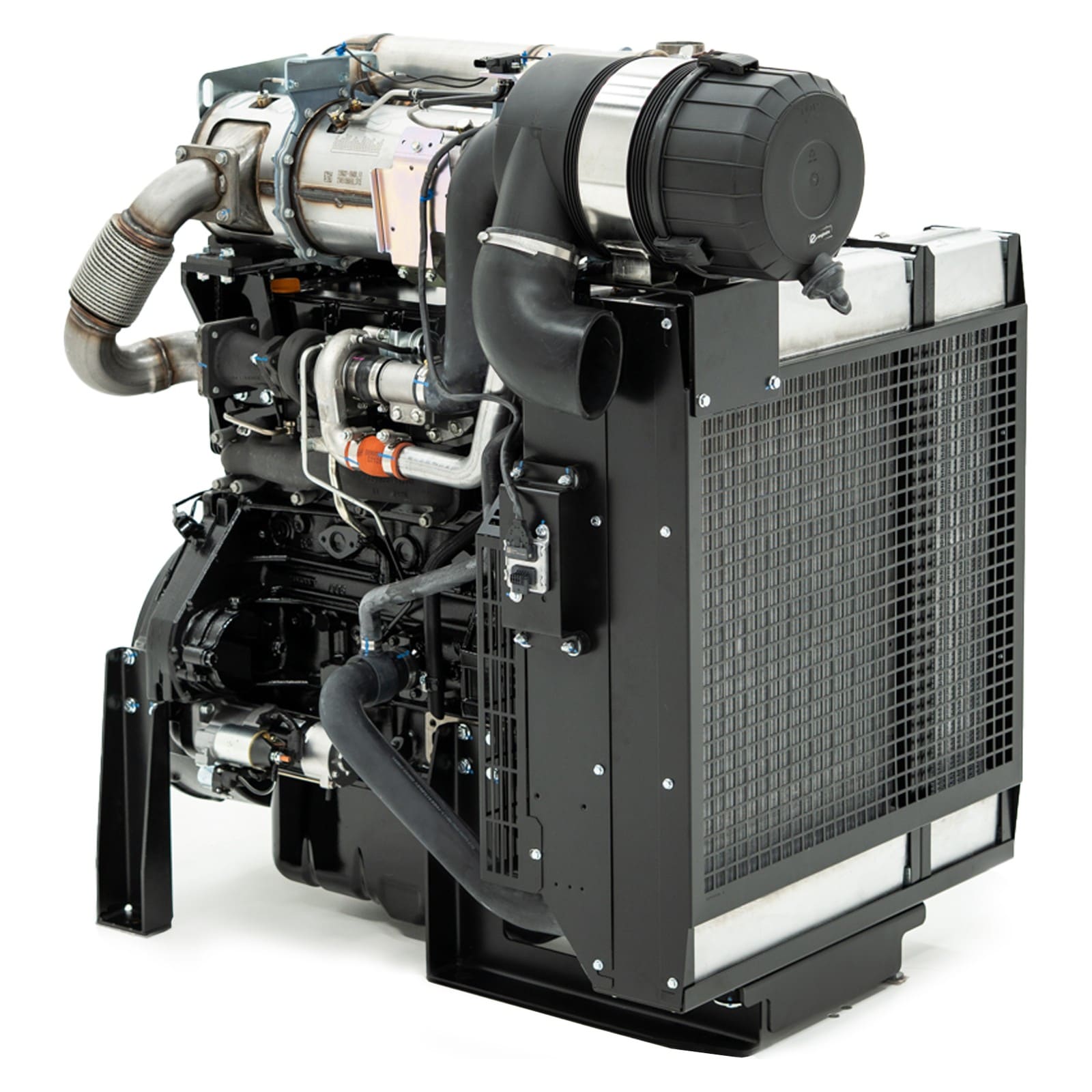

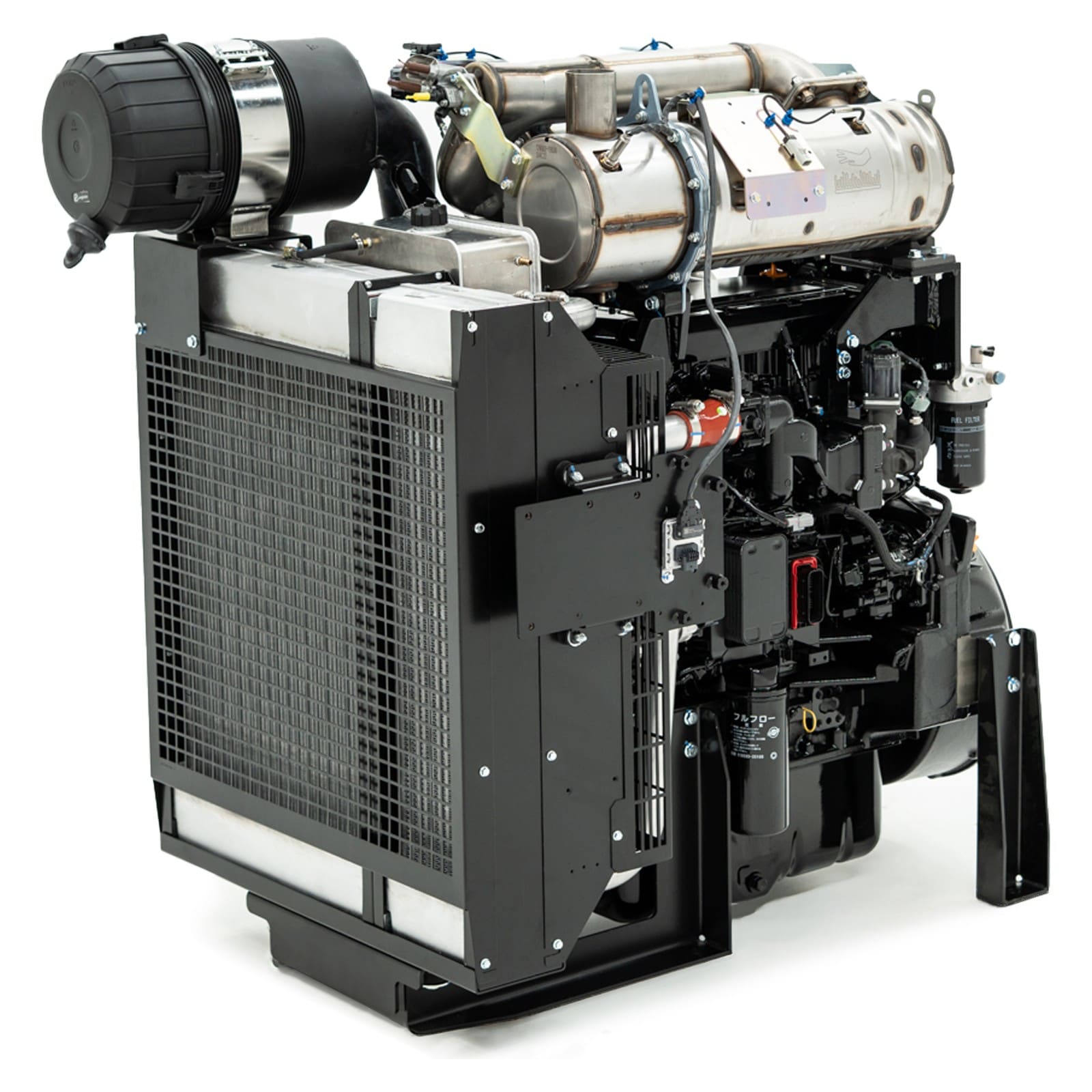

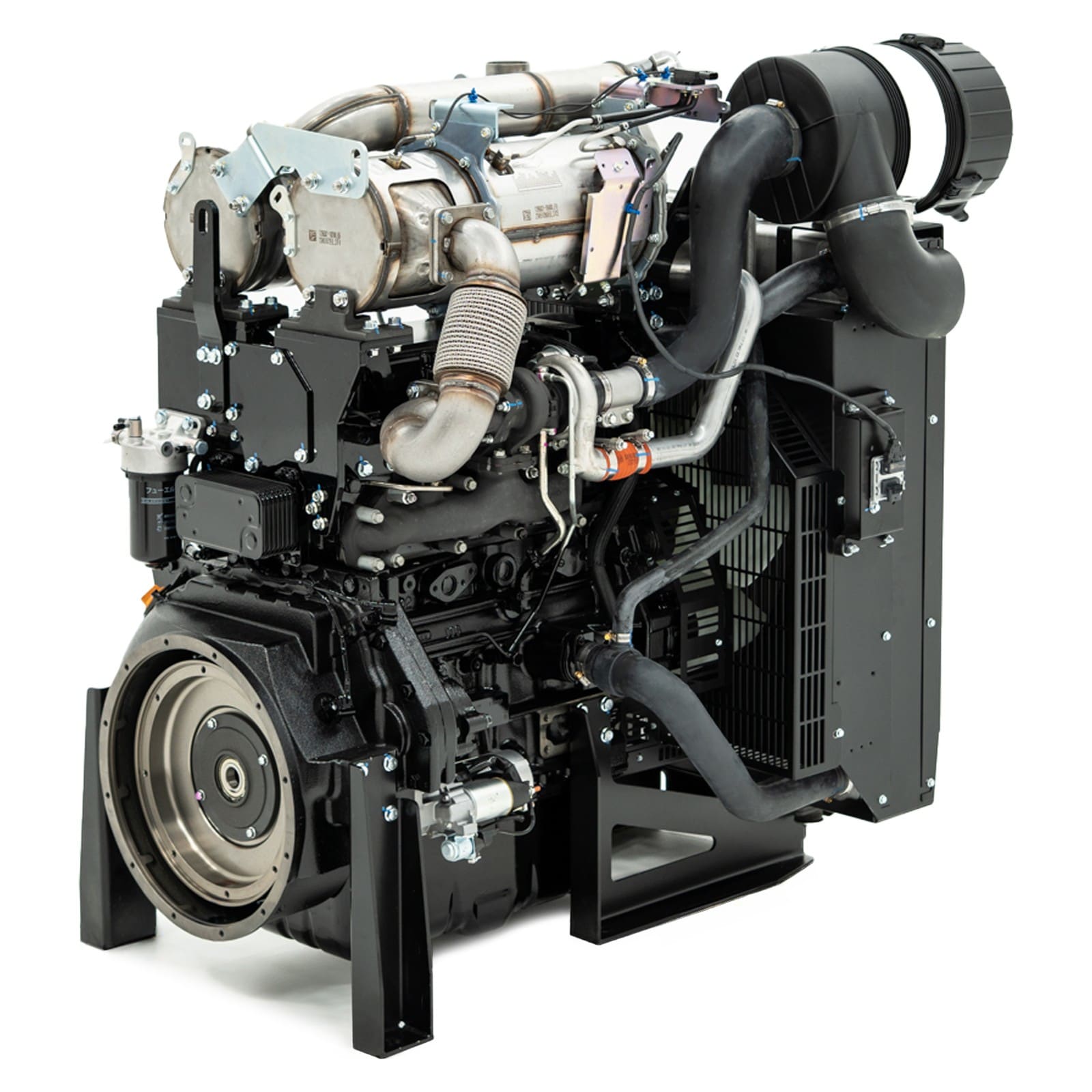

YANMAR’s high power TN series takes its industrial range up to 155 kW (208 hp). The 4TNV94FHT, 4TN101 and 4TN107 are four-cylinder, water-cooled diesels with common rail injection, cooled EGR and a DOC, DPF and selective catalytic reduction (SCR) after-treatment system, to meet EPA/CARB Final Tier 4 and EU Stage V. YANMAR builds them on best-in-class fuel consumption, power density, a wide power range and outstanding torque.
Best in class fuel consumption. Advanced combustion technology, cultivated over years of building industrial and marine diesels, cuts fuel use for longer operating times and real savings over the life of the engine.
High power density. The 4TN107FTT’s two-stage turbocharger gives it a class-leading power density of 34 kW/L (0.75 hp/ci).
Wide power range. The 4TN101 covers 77 to 105 kW (103 to 140 hp) and the 4TN107 90 to 155 kW (120 to 208 hp), with ratings from 1800 to 2200 rpm. The table on the Specs tab lists each model at its top rating.
Compliance and uptime. SCR injects a urea solution into the exhaust to turn NOx into nitrogen and water, alongside the DOC and DPF. YANMAR designed the series to keep working at high altitude, at low temperature, and under light or heavy loads.
Outstanding torque. Up to 805 Nm, for industrial applications such as construction, agriculture and material handling.
- EPA/CARB Final Tier 4 and EU Stage V
- 114 to 207.9 hp, rated at 2200 rpm (2500 rpm on the 4TNV94FHT)
- Four cylinders, 3.05 to 4.57 L, turbocharged and intercooled
- DOC, DPF and SCR after-treatment
- 4TNV94FHT and 4TN107FTT available as a YANMAR Power Pack
Tell our industrial team your application and power requirement, and we will match the right build.
