Standby Diesel Power from 7 to 45 kW, Built in Sebring

MasPower is Mastry Engine Center’s own range of industrial generators, power units and pumps. Each MasPower unit is assembled at Mastry’s facility in Sebring, Florida, on premium engines such as YANMAR, and adapted to the application it is built for.

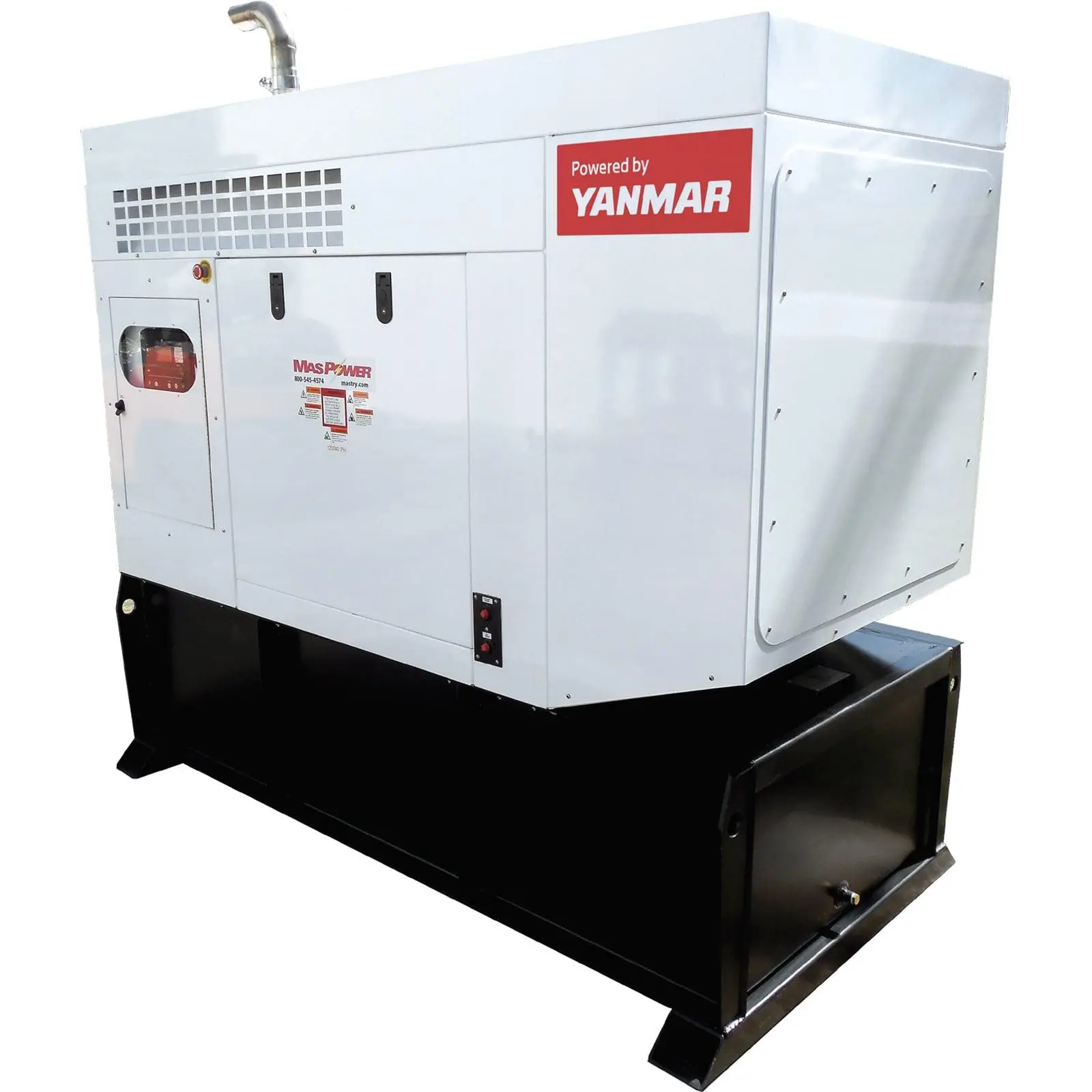

The MasPower diesel generator series runs on 1800 rpm YANMAR diesel engines and meets EPA regulations for standby emergency generator use. Seven standby models cover 7 to 45 kW at 120/240 V single phase, each in a weatherproof, powder-coated aluminum enclosure with sound reduction material, and each is built to Mastry’s own standards, with no shortcuts on quality.

Every model carries a two-year warranty. Other sizes are available on request.

Standard equipment

  • YANMAR diesel engine, known for reliability, long life and worldwide service
  • Two-year warranty
  • AC single-phase alternator and regulator
  • Main line circuit breaker and wiring lug connections
  • Weatherproof powder-coated aluminum enclosure with sound reduction material
  • Battery charging alternator, battery rack and cables, and 12 V battery maintainer
  • Deep Sea controller with auto start and safety shutdowns
  • Heavy-duty vibration mounts between generator and base fuel tank
  • Residential-type exhaust silencer and heavy-duty dry-type air cleaner

Options

  • Block heater
  • Fuel tanks in various sizes, UL listed
  • Transfer switch
  • Open skid-mounted unit
  • Three phase

Series specifications

Specification Value
Generator type Standby, emergency grade
Voltage 120/240 V, single phase
Frequency 60 Hz
Fuel Diesel
Engine YANMAR diesel, liquid cooled
Engine speed 1800 rpm
Starting system 12 V
Controller Deep Sea, with auto start and failure shutdown
Enclosure Powder-coated aluminum
Sound level 68 dBA at 7 meters
Engine warranty 2 years

Models

Model MEC07-CE MEC09-CE MEC13-CE MEC18-CE MEC25-CE MEC35-CE MEC45-CE
Standby rating 7 kW 9 kW 13 kW 18 kW 25 kW 35 kW 45 kW
Rated current at 240 V 29 A 38 A 55 A 75 A 104 A 145 A 187 A
Main line circuit breaker 30 A 40 A 60 A 80 A 100 A 150 A 200 A
Fuel consumption at 50% load 0.32 gal/h 0.39 gal/h 0.58 gal/h 0.87 gal/h 1 gal/h 1.5 gal/h 1.87 gal/h
Fuel tank 50 gal 50 gal 50 gal 100 gal 100 gal 120 gal 120 gal
Run time at 50% load 156 h 128 h 86 h 115 h 100 h 80 h 64 h
YANMAR engine 3TNV74F 3TNV80F 3TNV88F 4TNV88 4TNV84T 4TNV98 4TNV98T
Cylinders / displacement 3 / 993 cc 3 / 1267 cc 3 / 1642 cc 4 / 2190 cc 4 / 1995 cc 4 / 3319 cc 4 / 3319 cc
Deep Sea controller 3110 3110 3110 6110 6110 6110 6110
Dimensions, L x W x H 81 in x 36 in x 74 in 81 in x 36 in x 74 in 81 in x 36 in x 74 in 90 in x 46 in x 76 in 90 in x 46 in x 76 in 109 in x 46 in x 82 in 109 in x 46 in x 82 in
Weight 1650 lb 1690 lb 1726 lb 1900 lb 1950 lb 2137 lb 2287 lb
