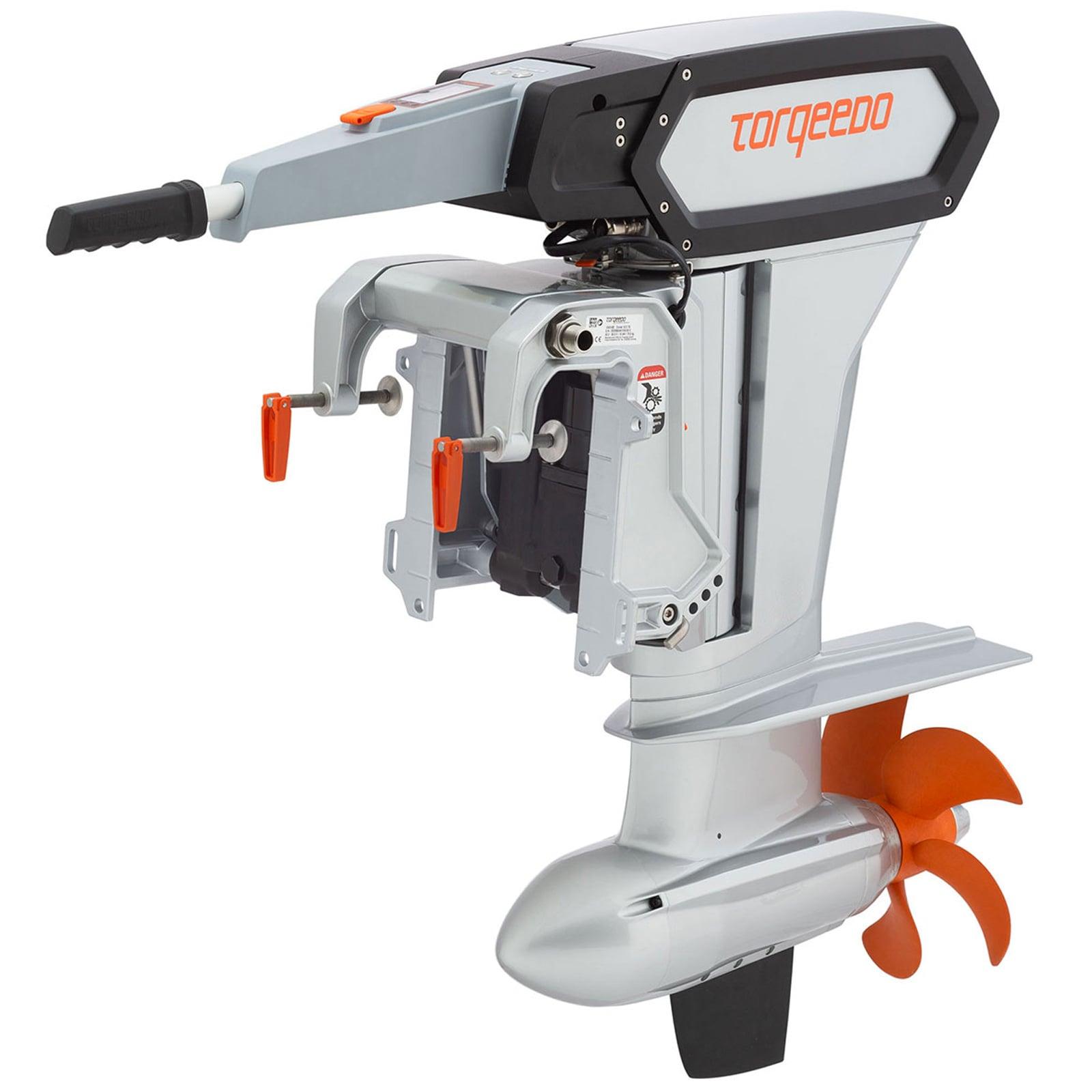

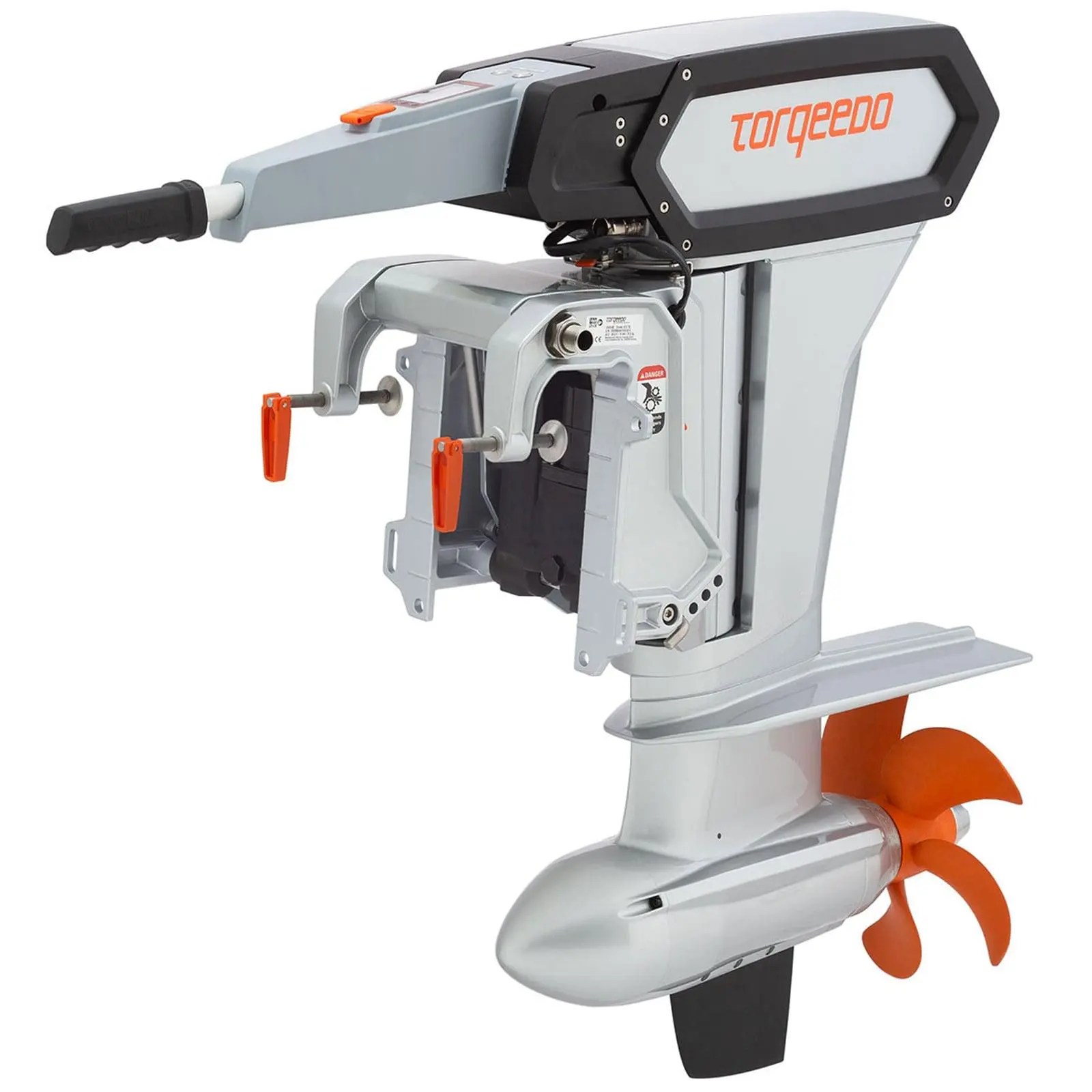

Cruise 10.0 TXL

SKU: 1245-00 Category:

Cruise motors have a built-in GPS, with on-board computer and display, showing information such as speed and input power, state of charge and remaining range, even with third-party batteries. They have a robust, wear-resistant design thanks to features such as a housing that is waterproof to IP67, pylons made from aluminium and a specially reinforced fin. They team up with the purpose-developed propellers and additional Torqeedo components to create a highly impressive package.

The flagship model in the Cruise series delivers 12 kW of peak output and a continuous output of 10 kW, which can propel efficient boats up to a maximum speed of 30 km/h.

Its power supply requires at least two (Power 48-5000) or four lithium batteries (Power 24-3500)

Cruise 10.0 T – Benefits:

  • 12 kW peak power, 10 kW continuous power – powerful propulsion like a 20 HP combustion engine
  • Simple handling thanks to voltage level of 48 V
  • We recommend the Cruise 10.0 for dinghies and sailboats up to 10 tons.
  • Intelligent on-board computer and all of the convenience of a Torqeedo electric drive system
  • Very robust design – protected from corrosion, saltwater-capable, and completely waterproof (IP67)
  • Low-profile design – elegant and modern …



Cruise 10.0 T
Input power in watts 10,000
Propulsive power in watts 5,600
Comparable petrol outboards (propulsive power) 20 HP
Comparable petrol outboards (thrust) 25 HP
Maximum overall efficiency in % 56
Static thrust in lbs* ≤ 405
Integrated battery
Nominal voltage 48
Final charging voltage
Total weight in kg 60.3 (S) / 61.8 (L) / 63.0 (XL)
Motor weight without battery in kg
Weight of integrated battery
Shaft length in cm 38.5 (S) / 51.2 (L) / 63.9 (XL)
Standard propeller
v = speed in km/h at p = power in watts
v22/p10k
Alternative propeller options v32/p10k & v15/p10k
Maximum propeller speed in rpm 1,400
Control Remote throttle
TorqLink No
Steering Provision to connect to standard remote steering
Tilting device Electrohydraulic tilt device with overload protection.
Tilt angle +-45°
Trim device Manual, 4-step
Integrated on-board computer Yes
Stepless forward/reverse drive Yes
