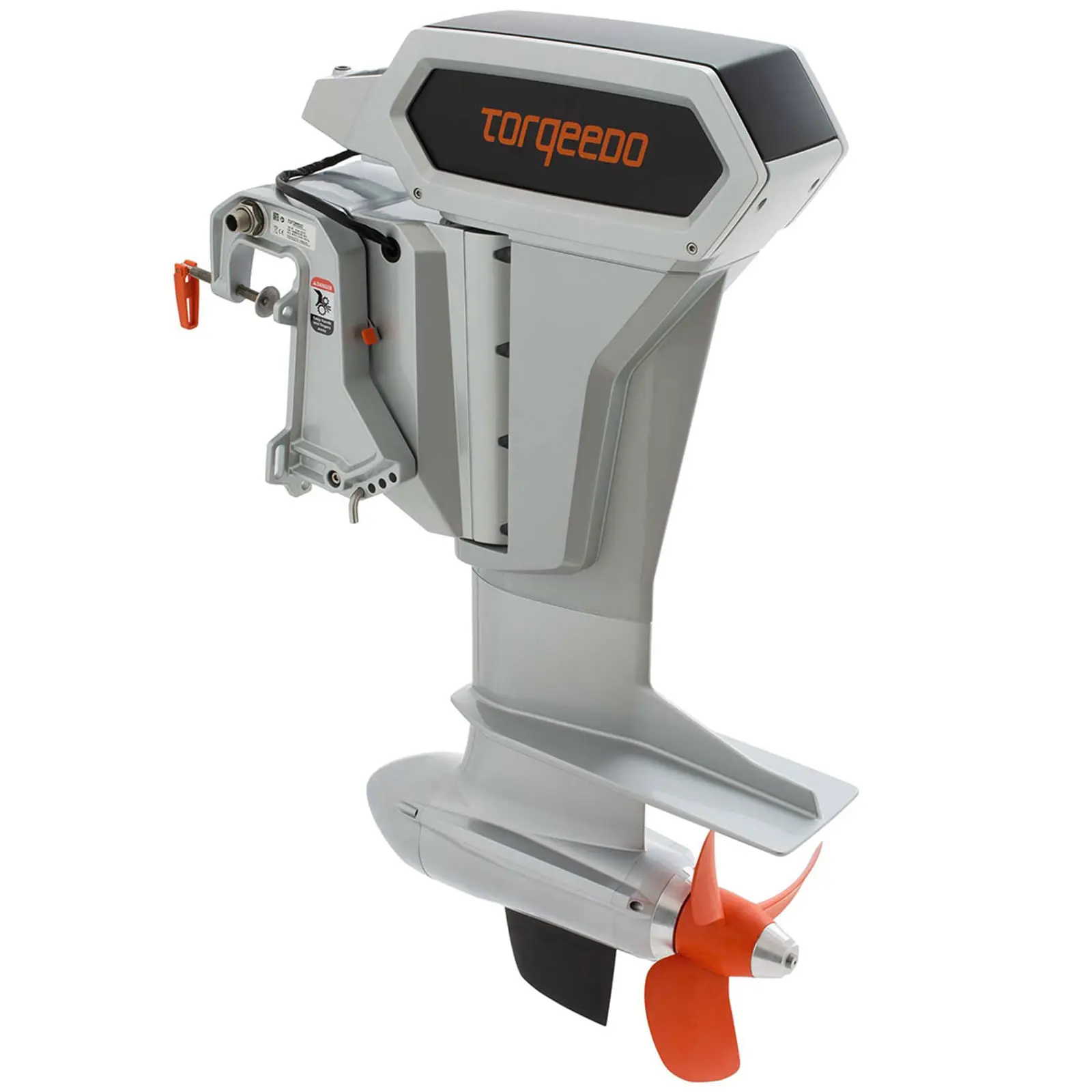

Cruise 10.0 RL TorqLink

SKU: 1241-00 Category:

The flagship of the Cruise line: The Cruise 10.0 not only has an impressive appearance, it also delivers impressive performance. High-tech from the shaft head to the fin – and emission-free. Make way for the Cruise 10.0!

The Cruise 10.0 is comparable to a 20 HP petrol outboard and can be easily mounted on your boat with a couple of tools.

Two Power 48-5000 batteries are required for operation at full power. If the Cruise 10.0 is operated with only one Power 48-5000, the power is reduced to 6 kW. The Cruise 10.0 is not compatible with the Power 24-3500.

Benefits

  • 12 kW peak power, 10 kW continuous power – powerful propulsion like a 20 HP combustion engine
  • Simple handling thanks to voltage level of 48 V
  • We recommend the Cruise 10.0 for dinghies and sailboats up to 10 tons.
  • Remote steering connector option, comes with remote throttle.
  • Intelligent on-board computer and all of the convenience of a Torqeedo electric drive system
  • Very robust design – protected from corrosion, saltwater-capable, and completely waterproof (IP67)
  • Low-profile design – elegant and modern …



Cruise 10.0 R
Input power in watts 10,000
Propulsive power in watts 5,600
Comparable petrol outboards (propulsive power) 20 HP
Comparable petrol outboards (thrust) 25 HP
Maximum overall efficiency in % 56
Static thrust in lbs* ≤ 405
Integrated battery
Nominal voltage 48
Final charging voltage
Weight in kg (w/o cables & main switch) 59.8 (S), 61.3 (L), 62.5 (XL)
Motor weight without battery in kg
Weight of integrated battery
Shaft length in cm 38.5 (S) / 51.2 (L) / 63.9 (XL)
Standard propeller
v = speed in km/h at p = power in watts
v22/p10k
Alternative propeller options v32/p10k & v15/p10k
Maximum propeller speed in rpm 1,400
Control Remote throttle
Steering Provision to connect to standard remote steering
Tilting device Electrohydraulic tilt device with overload protection.
Tilt angle +-45°
Trim device Manual, 4-step
Integrated on-board computer Yes
Stepless forward/reverse drive Yes
