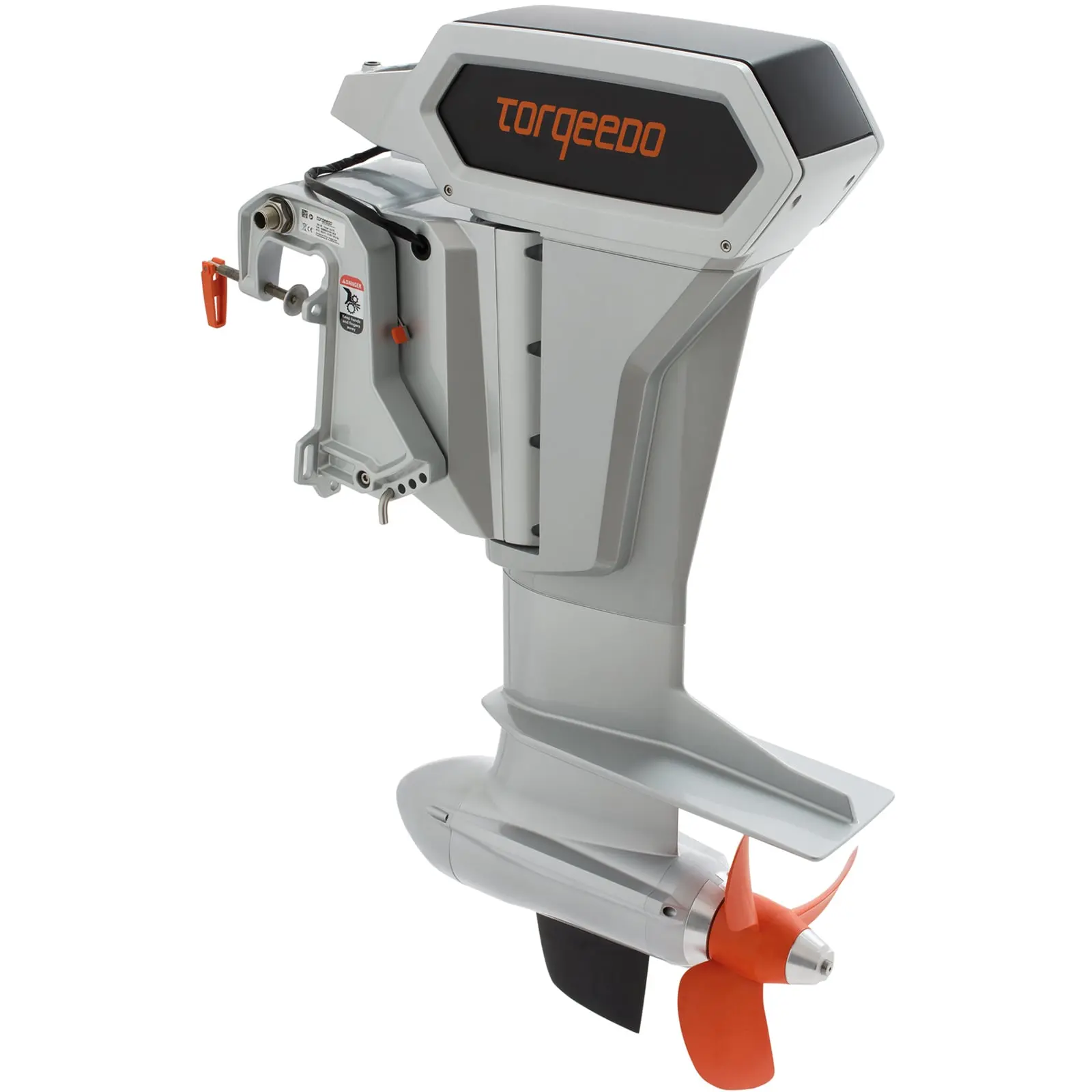

The new flagship of the Cruise line: The new Cruise 10.0 not only has an impressive appearance, it also delivers impressive performance. High-tech from the shaft head to the fin – and emission-free. Make way for the Cruise 10.0!
The Cruise 10.0 is comparable to a 20 HP petrol outboard and can be easily mounted on your boat with a couple of tools.
Its power supply requires at least two (Power 48-5000) or four lithium batteries (Power 24-3500)
Benefits
- 12kW peak output, 10kW continuous output – powerful propulsion comparable to a 20 HP combustion engine
- Intelligent on-board computer and the full convenience of a Torqeedo electric drive system
- Electric tilting device for ease of operation
- Easy handling thanks to low-voltage level (48 Volt)
- Very robust design – corrosion-protected, sea water-capable and completely waterproof (IP67)
- Slimline construction – elegant and modern
- Versions: short shaft S: 38.5cm shaft length, long shaft L: 51.2cm shaft length, extra long shaft XL: 63.9cm shaft length
- Weight in kg (w/o cables & main switch): 59.8 (S), 61.3 (L), 62.5 (XL)
|
|
Cruise 10.0 R |
| Input power in watts |
10,000 |
| Propulsive power in watts |
5,600 |
| Comparable petrol outboards (propulsive power) |
20 HP |
| Comparable petrol outboards (thrust) |
25 HP |
| Maximum overall efficiency in % |
56 |
| Static thrust in lbs* |
≤ 405 |
| Integrated battery |
– |
| Nominal voltage |
48 |
| Final charging voltage |
– |
| Weight in kg (w/o cables & main switch) |
59.8 (S), 61.3 (L), 62.5 (XL) |
| Motor weight without battery in kg |
– |
| Weight of integrated battery |
– |
| Shaft length in cm |
38.5 (S) / 51.2 (L) / 63.9 (XL) |
Standard propeller
v = speed in km/h at p = power in watts |
v22/p10k |
| Alternative propeller options |
v32/p10k & v15/p10k |
| Maximum propeller speed in rpm |
1,400 |
| Control |
Remote throttle |
| Steering |
Provision to connect to standard remote steering |
| Tilting device |
Electrohydraulic tilt device with overload protection. |
| Tilt angle |
+-45° |
| Trim device |
Manual, 4-step |
| Integrated on-board computer |
Yes |
| Stepless forward/reverse drive |
Yes |
* Torqeedo static thrust measurement is based on internationally accepted ISO standards. Static thrust figures for conventional trolling motors are typically measured differently, which results in higher values. To compare Torqeedo static thrust data with conventional trolling motors, add approximately 50% to the Torqeedo static thrust values.
