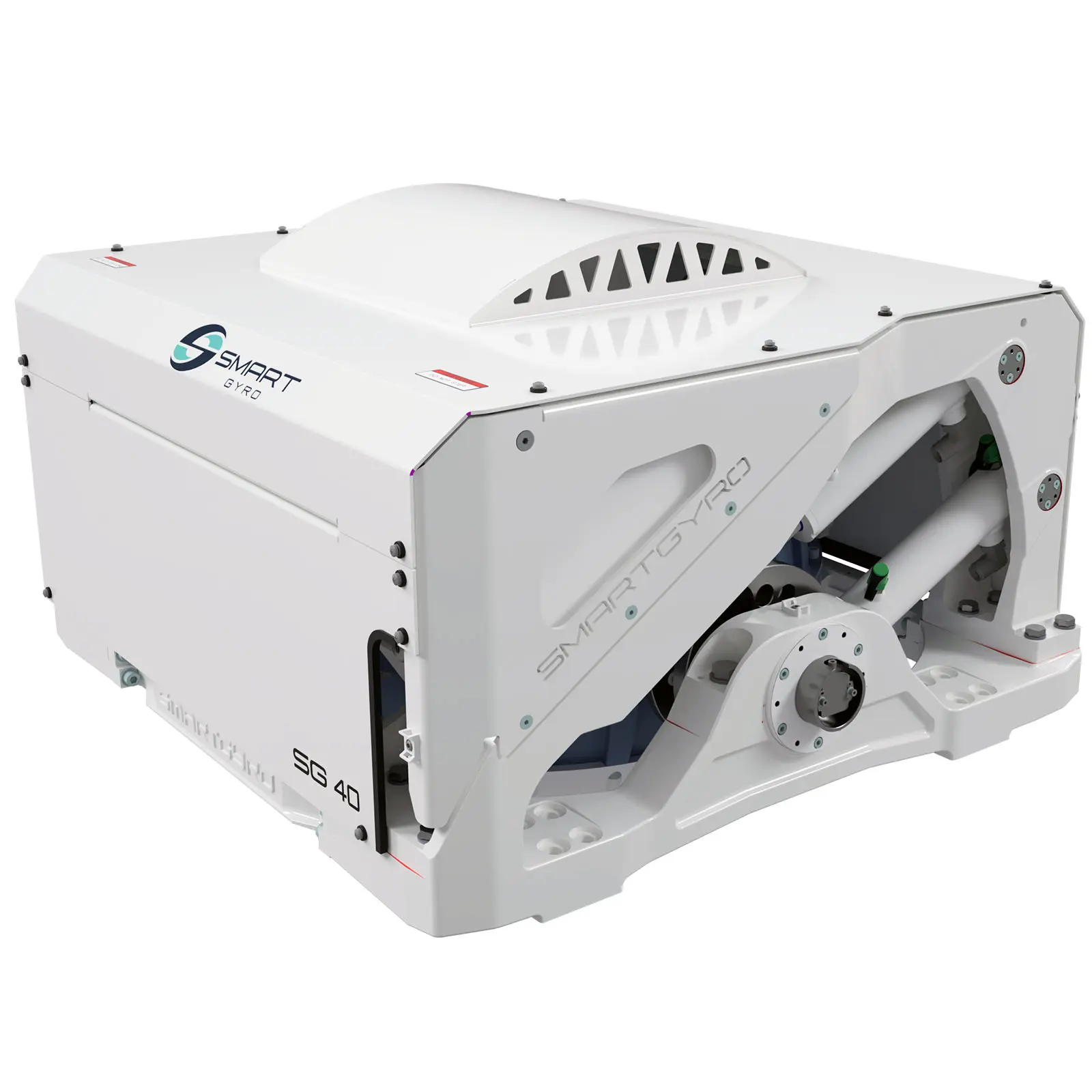

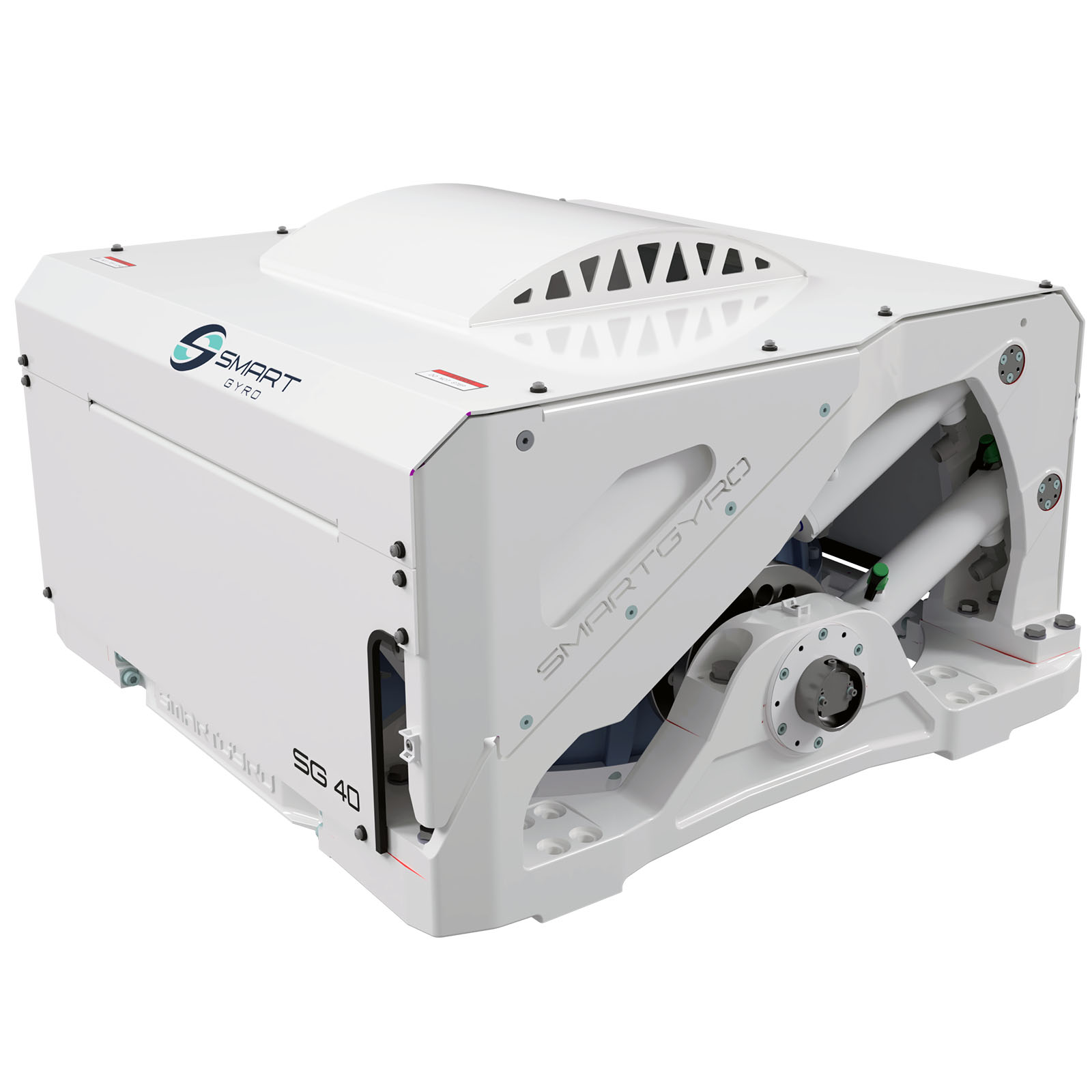

Smartgyro SG40 is the gyro stabilizer of choice for boats from 50-60 ft. Ideal for both new builds and refit installations, the stabilizer can be fully serviced on-board the vessel without the need to lift out for maintenance, ensuring significant time and cost savings.
SG40
| Target Boat | 50 – 60’ or up to 40 tons |
| Anti-Rolling Torque | 19.000 Nm at max. rated speed |
| Envelope Dimensions | 0.86 x 0.93 x 0.72 m [34.0 x 36.5 x 28.4 in] |
| Maximum Rated Speed | 7.500 RPM |
| Input Voltage (AC) | 220V nominal, 50/60 Hz, single phase |
| Weight | 650 kg [1430 lbs] |
| Angular Momentum | 9.100 Nms at max. rated speed |
| Input Voltage (DC) | 24 Vdc |
