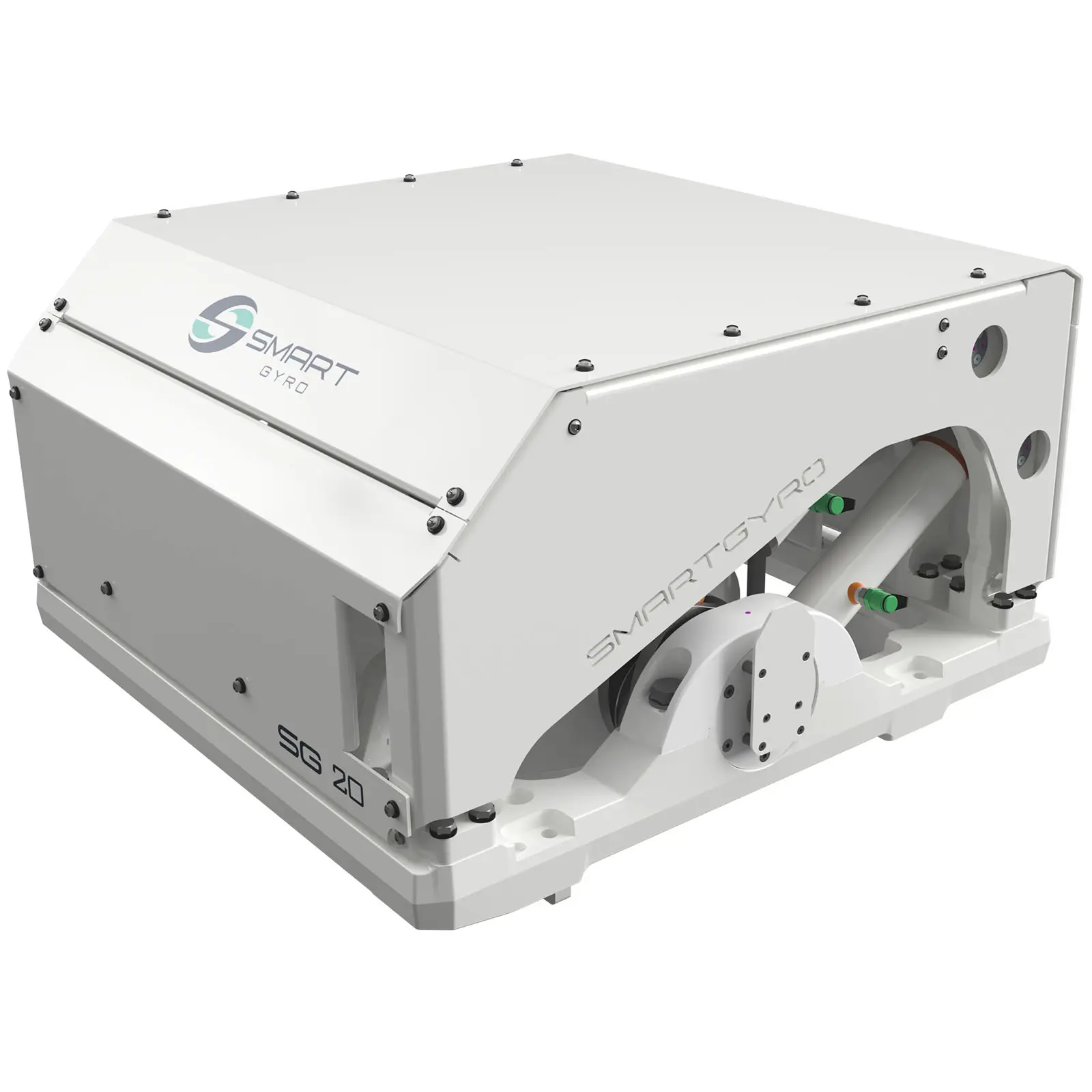

Smartgyro SG20 is the gyro stabilizer of choice for boats from 45-55 ft. Ideal for both new builds and refit installations, the stabilizer can be fully serviced on-board the vessel without the need to lift out for maintenance, ensuring significant time and cost savings.
SG20
| Target Boat | 45 – 55’ or up to 25 tons |
| Anti-Rolling Torque | 15.500 Nm at max. rated speed |
| Envelope Dimensions | 0.76 x 0.77 x 0.65 m [29.9 x 30.3 x 25.6 in] |
| Maximum Rated Speed | 9.500 RPM |
| Input Voltage (AC) | 115V nominal, 50/60 Hz, single phase, 220V nominal, 50/60 Hz, single phase |
| Weight | 495 kg [1091 lbs] |
| Angular Momentum | 5.900 Nms at max. rated speed |
| Input Voltage (DC) | 12 Vdc |
