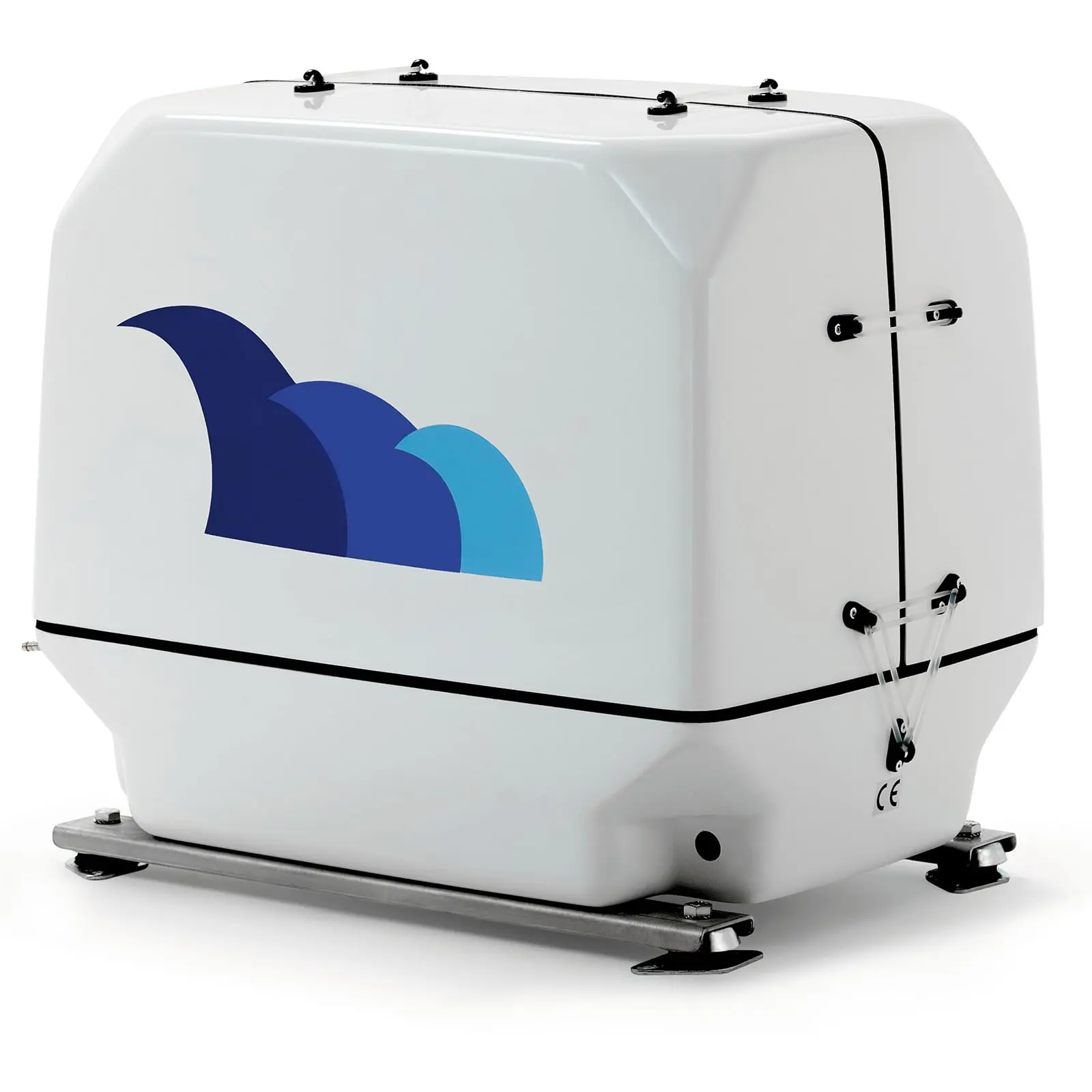

PAGURO 9500

Request a Quote

SKU: AP09511560SY Category:

PAGURO RANGE: FLEXIBLE AND SILENT PERFORMANCE

VTE’s marine generator sets are the market benchmark for the optimal ratio of performance, quietness and small size.
The PAGURO range is very wide to satisfy every need for power and performance, for sailboats and motorboats.

SILENT

Both the engine and the alternator of the Paguro generators are water-cooled: as there is no need for ventilation for cooling, the noise is drastically reduced. In addition, the outer shell has a single small opening for the entrance of the combustion air with a labyrinth path that prevents the noise from coming out; the outer casing is made of reinforced multilayer fiberglass and covered in high density neoprene for maximum sound insulation.

LIGHTWEIGHT AND COMPACT

Each product of the Paguro range is designed and built with ad hoc components to reduce the overall dimensions and exploit the empty spaces inside. Thanks to the VTE technology, each Paguro generator is the compact with the same energy performance with only 462 Lbs of weight and ultra compact dimensions (L38.8xW22.8xH25.1], produces 14 kW continuous.

SAFE

The VTE generators are equipped with warning lights and a load indicator with a luminous column with LED for an immediate evaluation of the power usage. The panel will stop the unit automatically in case of low oil pressure or overtemperature.

  PAGURO 4000 PAGURO 7500 PAGURO 9500
Generator manufacturer

VTE Srl – Italy

Alternator type

Synchronous, brushless, capacitor regulation

Continuous electrical power

3.2 KW



7 KW (50 Hz)

7 KW (60 Hz)

9 KW (50 Hz)

9 KW (60 Hz)

Voltage output Single phase 115 (60 Hz) OR 230

Single-phase 230 V (50 Hz), 115 (60 Hz) OR 115/230

Peak Current 80 A 72 A (50 Hz) / 144 A (60 Hz) 102 A (50 Hz) / 204 A (60 Hz)
Continuous Duty Amp  28 AMP 56 (50 Hz) 60 (60 Hz) 78 (50 Hz) 78 (60 Hz)
Alternator cooling system

Water cooled through a water jacket made in stainless steel AISI 316 L

Engine manufacturer and type Yanmar L70 Yanmar 3TNV80F Yanmar 3TNV80F
Cylinders nr. 1 3 3
Engine speed 3600

1500 (50 Hz) / 1800 (60 Hz) giri – rpm – U/min – tr/min

Starting and shut-off system

12 V electrical starter, remote controlled

Specific fuel consumption

0.35 lt/KW/h

Engine cooling system Heat exchanger water/air stainless steel

Fresh water with heat exchanger

Cooling pump

Self priming

Alternator

Synchronous, brushless, capacitor regulation

Water-cooled through a water jacket made in stainless steel AISI 316 L

Battery charger for dedicated starting battery (12V 8A0

                                                                                                                              Insulation class C

Engine

Diesel fueled

1 cylinder

Cooling circuit via heat exchanger

Four cycle

Diesel fueled

3 cylinders

Fresh water cooling circuit

Via heat exchanger

Remote control

Remote control with LCD display

Load indicator, hour meter, frequency / engine speed

Automatic shut down for low oil pressure and/or high temperature

With 15 mt of cable and quick connector

Automatic start (optional)

Soundproof capsule

Soundproof capsule made from multi layer GRP, a high density sound absorbing material and heat insulating foam lining

Split into two halves, the capsule lids enable ease of access for servicing, even in tight spaces

Dual anti-vibration system based on 4 internal shock absorbers and 4 firm captive engine mounts outside the capsule

Dimensions L x W x H (in) 24 x 18.25 x 22 31.4 x 21.2 x 25.6 32.6 x 21.2 x 25.6
Weight (capsule included) lbs 209 474 507
Noise level dB (A) 7mt 53 dB (A)

49 dB (A)
