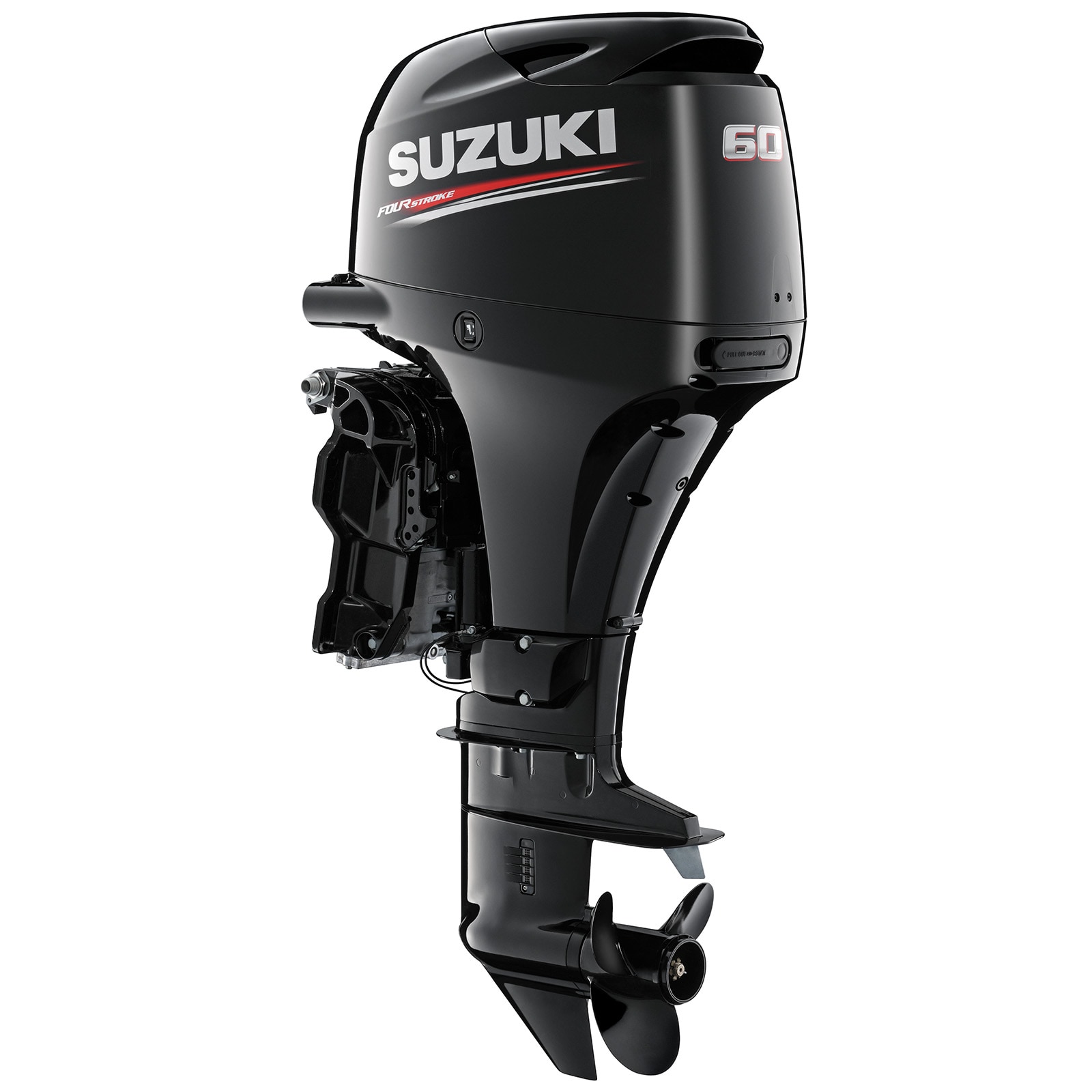

DF60AV

SKU: WEBDF60AV Category:

The New DF60AV is designed with a “High Energy Rotation” lower unit sporting a 2.42:1 gear ration, which enables this new model to use a bigger 14″ propeller – perfect for powering pontoon boats and other large, heavy craft. This mid-range engine is also designed with Lean Burn Fuel Control System, which adjusts the air/fuel mixtrue according to operating conditions. The system significantly improves fuel efficiency across the operating range, from low speeds well up into the cruising range. New DF60AV model is also available with the optional Suzuki Troll Mode System.

Features

  • High Energy Rotation Lower Unit
  • Multi Point Sequential Electronic Fuel Injection
  • Suzuki Lean burn Control System
  • Suzuki Troll Mode System
  • Direct Ignition
  • Suzuki Easy Start System
  • Over-Rev. Limiter
  • Low Oil Pressure Caution
  • Fully Transistorized Ignition
  • Timing Chain
  • Fresh Water Flushing System
  • Power Trim and Tilt
  • Tilt Limit
  • Suzuki Anti-Corrosion System

Product Information

Body Color Pearl Nebular Black
Recommended Transom Height (inches) L: 20
Starting System Electric
Weight LBS L: 253
Engine Type DOHC 12-Valve
Fuel Delivery System Multi Point Sequential Electronic Fuel Injection
No. Of Cylinders 3
Piston Displacement inches (cc) 57.4 (941)
Bore X Stroke Inches (mm) 2.85 x 2.99 (72.5 x 76)
Maximum Output HP 60
Operating Range (RPM) 5300 – 6300
Steering Remote (Tiller Kit Optional)
Choke N/A
Oil Pan Capacity quarts (liter) 2.9 (2.7)
Ignition System Solid State Direct Ignition
Alternator 12V 19A
Trim Position Power Trim and Tilt
Gear Ratio 2.42:1
Standard Propeller Optional See Dealer
Propeller Selection 9 – 17
