10kW submersible motor

SKU: UWM10-web Category: Piktronik

Downloads
Specs

Piktronik Motor Brochure

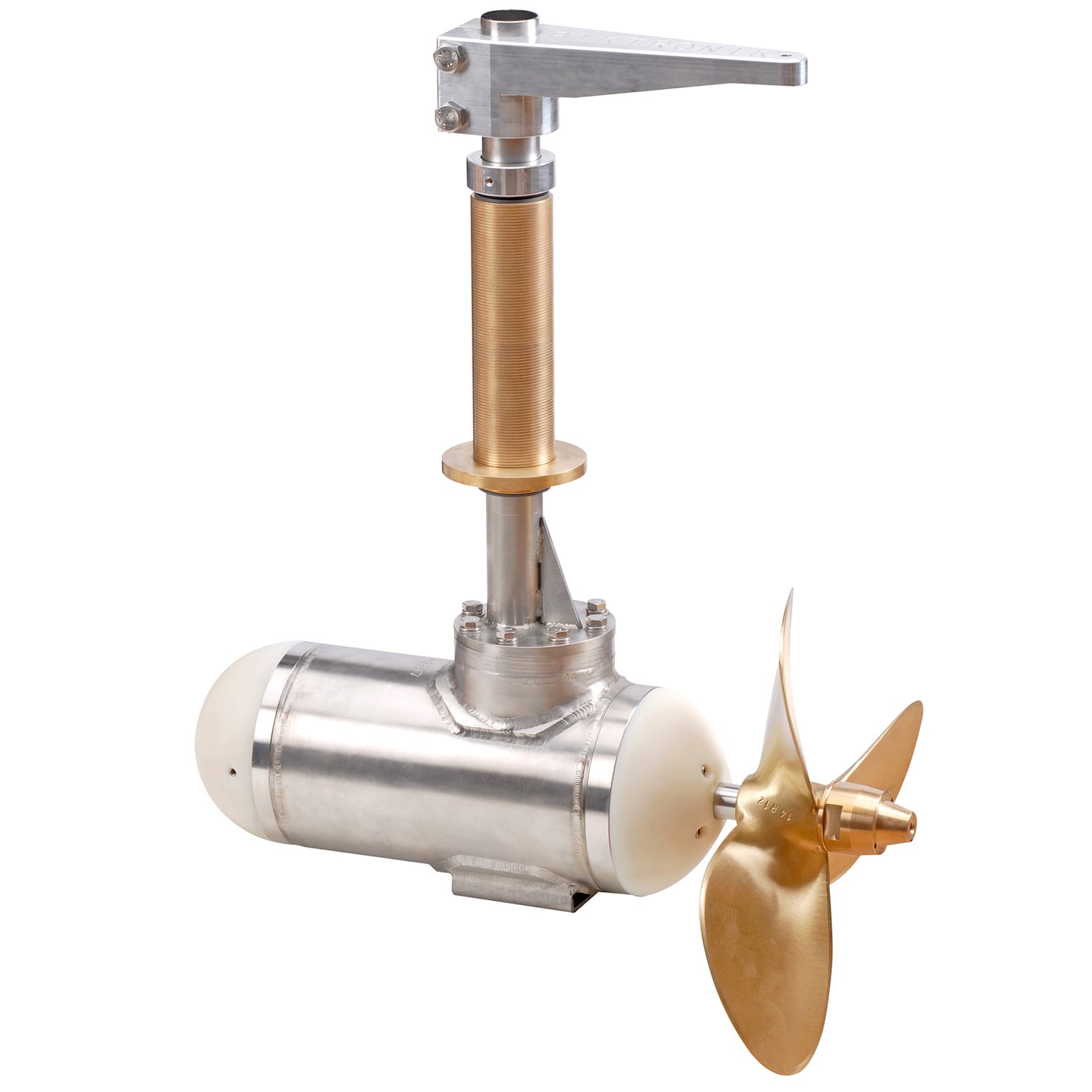

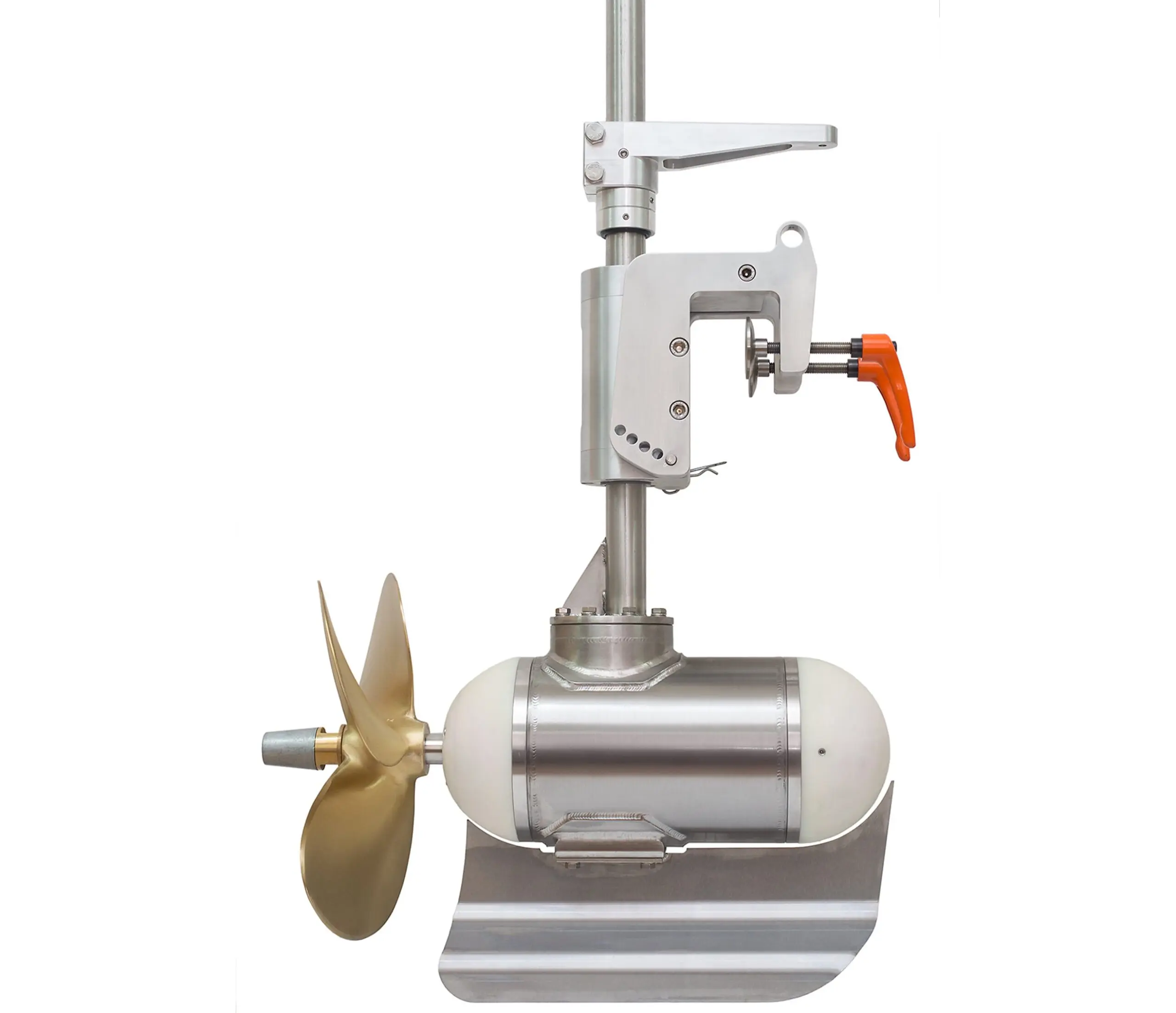

10kW submersible motor
Type:	Underwater-PMSM (3~)
Rated power:	10 kW (13.6 HP) \| S1
Speed:	1000 RPM
Voltage:	30 V
Rated current:	205 A
Frequency:	100 Hz
Rated torque:	95 Nm
Weight:	37 kg
