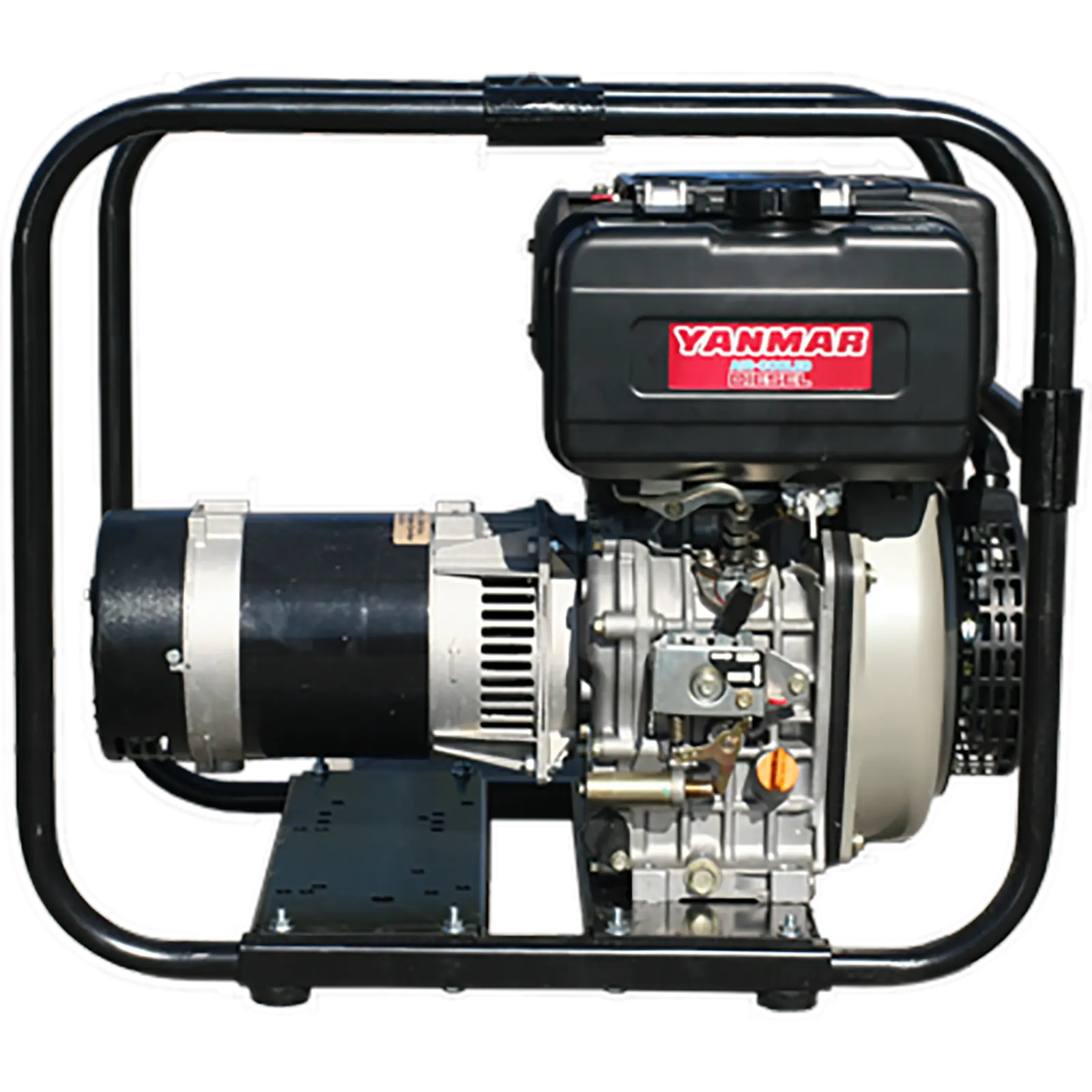

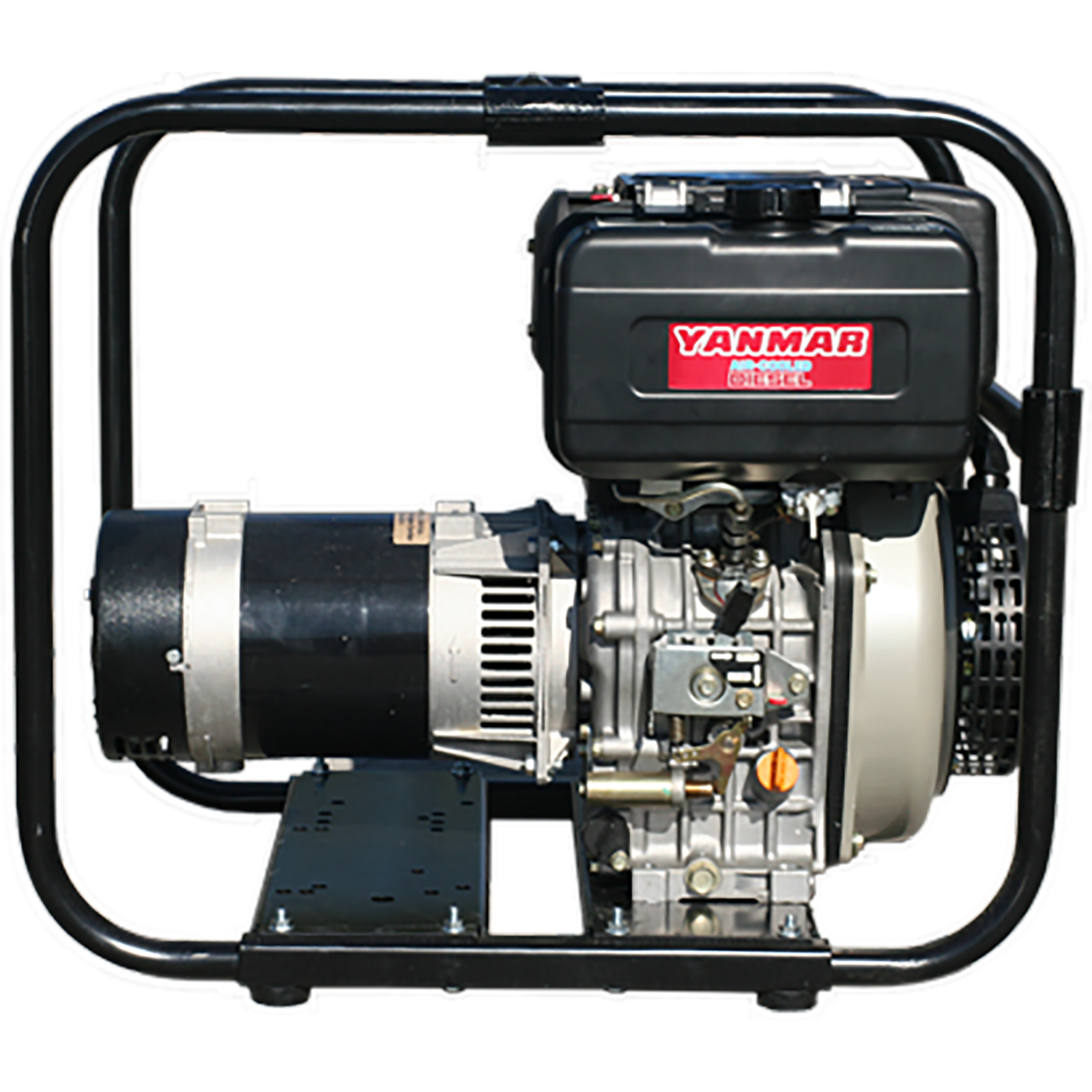

Air Cooled MP Diesel Generator – 2.7 – 5.5kW
| Generator Spec. | MP2700 | MP3700 | MP5500 | |
|---|---|---|---|---|
| Model |
Open Type
|
|||
| Type |
Brushless
|
|||
| Frequency (Hz) |
60
|
|||
| Output (AC) | Max. kW | 2.7 | 3.7 | 5.5 |
| Rated kW | 2.5 | 3.5 | 5.0 | |
| Engine Model (Yanmar) | L48V | L70V | L100V | |
| Engine Output (Max hp) | 4.7 @ 3600 | 6.7 @ 3600 | 10 @ 3600 | |
| Rated Voltage (V) |
120
|
120 / 240 | ||
| Rated Current (A) | 20.8 | 29.2 / 14.6 | 41.7 / 20.8 | |
| Voltage Control System |
Capacitor Regulated
|
|||
| Rotation Speed (rpm) |
3600
|
|||
| Number of Phases |
Single phase
|
|||
| Number of Poles |
2 Pole
|
|||
| Power Factor |
Unity 1.0
|
|||
| Insulation Class |
Class E
|
|||
| Bearing type |
Ball bearing (seal type)
|
|||
| Output receptacle (AC) | V-A | (2) 120 Duplex |
(1) 120 Duplex
|
|
| (1) 120 Twistlock | (1) 240 Twistlock | |||
| Breaker (AC) | (1) Breaker |
(2) Breakers
|
||
| Generator Size (LxWxH) (in) |
27x21x24
|
|||
| Weight (lbs) | 141 | 181 | 243 | |
